Editable and layered digital map of the 1768km 42″ Baku – Tbilisi – Ceyhan Pipeline (BTC) in Azerbaijan, Georgia, and Türkiye.

The map contains the 1768km 42″ Baku – Tbilisi – Ceyhan Pipeline (BTC), which runs from the Sangachal Terminal in Bakı (Baku), Ardahan, Azerbaijan, and ends at the Ceyhan Marine Terminal in Ceyhan, Adana, Türkiye. This crude oil pipeline map also includes a 5.1km loading line of Ceyhan Marine Terminal.

Table of Descriptions

1 Product Details

2 Files Included in This Digital Map

3 Editability of Map

4 Related Upstream/Downstream Pipelines

1 Product Details

• Product Name: Map of Baku – Tbilisi – Ceyhan Pipeline (BTC)
• Məhsulun Adı: Bakı–Tbilisi–Ceyhan neft kəməri xəritəsi
• პროდუქტისსახელი: ბაქო-თბილისი-ჯეიჰანისმილსადენირუკა
• Ürün Adı: Bakü-Tiflis-Ceyhan Petrol Boru Hattı Haritası
• Product Type: Vector Map
• Pipeline Abbreviation: BTC
• Pipeline Length: 1768km (BTC); 5.1km (Loading Line of Ceyhan Marine Terminal)
• Country: Azerbaijan, Georgia, Türkiye
• From: Bakı (Baku), Ardahan, Azerbaijan
• To: Ceyhan, Adana, Türkiye
• No. of Oil Process Plant, Pump Stations, Intermediate Pigging Stations, Pressure Reduction Station, Marine Terminal, Metering Station: 13
• No. of Block Valve Stations, Check Valve Stations: 101
• Coordinate Data: Not Available
• File Formats: Adobe PDF, Adobe Illustrator
• Lifetime Updates: Supported
• Language: English

Note: This digital map is NOT a GIS map or don’t contain coordinate data.

2 Files Included in This Digital Map

[Main Map] Baku – Tbilisi – Ceyhan Pipeline (BTC)

This map includes the geographical area from the pipeline’s starting point to its end point. Its content contains the pipeline route, stations along the pipeline, and the administrative regions that the pipeline passes through.

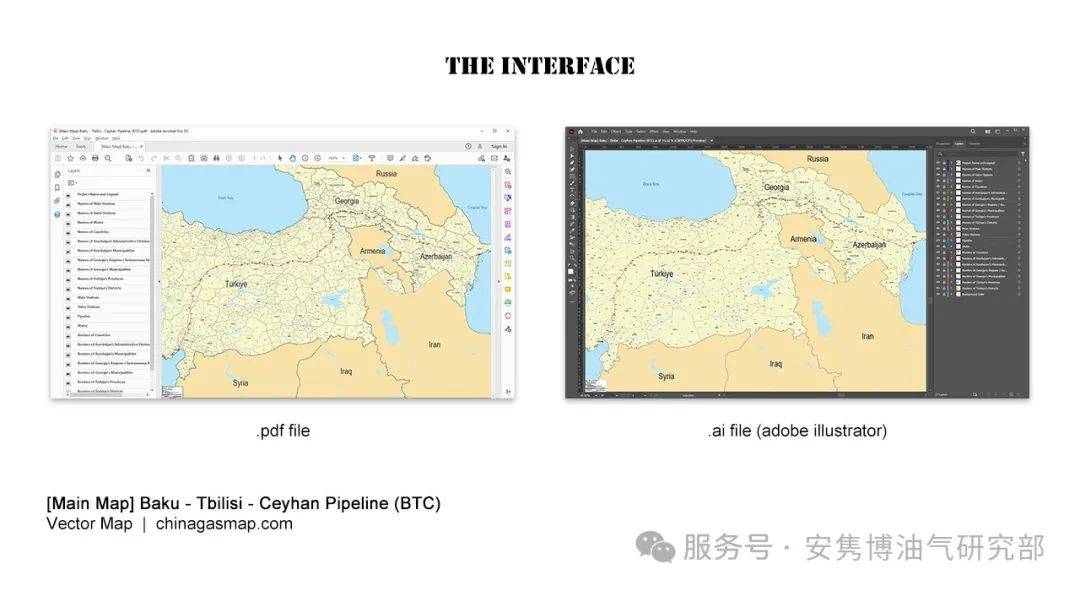

Two file formats, .pdf and .ai (Adobe Illustrator), are included. Both of them are editable and layered. Users can show and hide a layer simply with a mouse click.

The map consists of following independent layers:

• Project Name and Legend
• Names of Main Stations
• Names of Valve Stations
• Names of Water
• Names of Countries
• Names of Azerbaijan’s Administrative Divisions
• Names of Azerbaijan’s Municipalities
• Names of Georgia’s Regions / Autonomous Republics / Capital City
• Names of Georgia’s Municipalities
• Names of Türkiye’s Provinces
• Names of Türkiye’s Districts
• Main Stations
• Valve Stations
• Pipeline
• Water
• Borders of Azerbaijan’s Administrative Divisions
• Borders of Azerbaijan’s Municipalities
• Borders of Georgia’s Regions / Autonomous Republics / Capital City
• Borders of Georgia’s Municipalities
• Borders of Türkiye’s Provinces
• Borders of Türkiye’s Districts
• Background Color

3 Editability of Map:

Based on the layered digital map (.pdf and .ai), users can perform further development and modifications, including but not limited to:

• Adjusting the position of text and modifying its attributes such as font, font size, and color;
• Adjusting the position and size of icon symbols;
• Modifying the path of oil and gas pipelines to reflect changes caused by rerouting;
• Adding new pipelines and stations;
• Changing the border color and line weight of different administrative regions;
• Modifying the map background color.

4 Related Upstream/Downstream Pipelines:

We also provide digital maps of following direct upstream/downstream pipelines.

Downstream Pipelines:

Ceyhan – Kırıkkale Oil Pipeline
